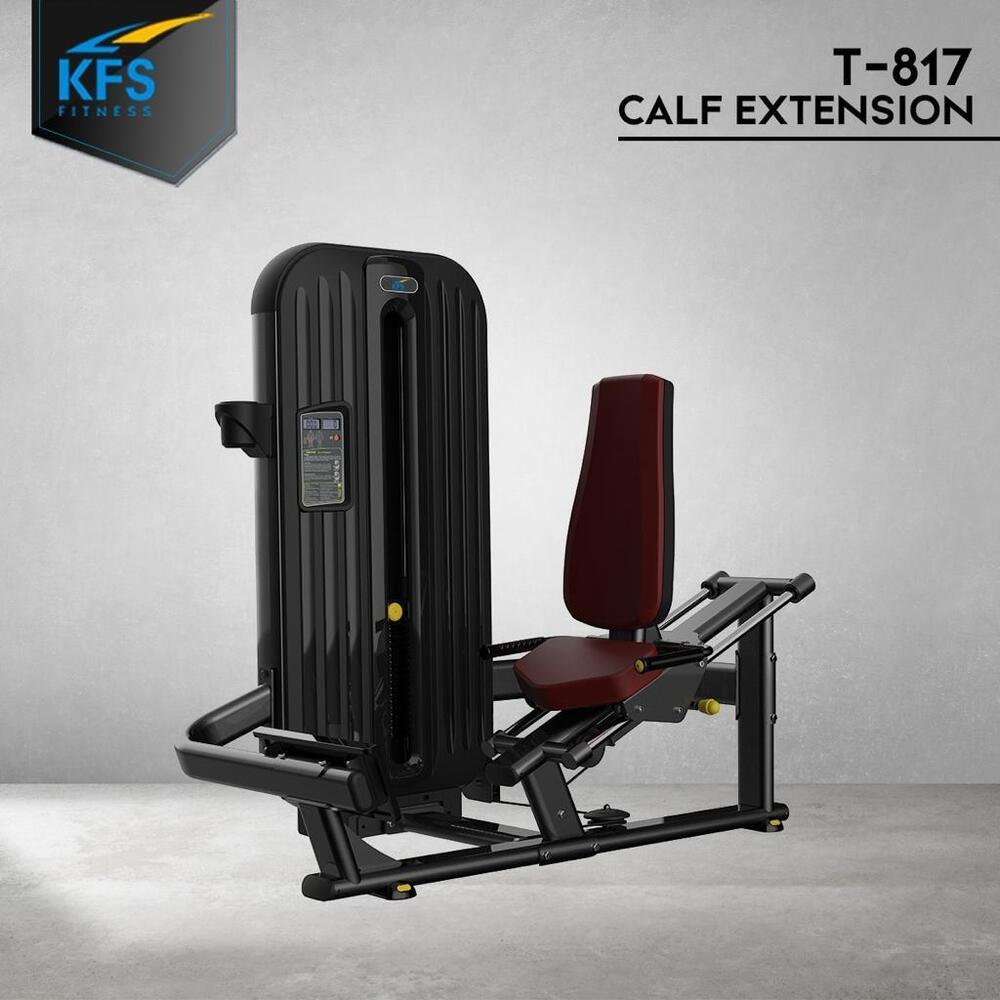

T-817 Calf Extension

Product Description

T8 SPECIFICATION

FEATURES

FRAME 1 Main frameFlatetube5012025T

2 Press arm Round tube 605030T Flat oval tube 408030T

3 Connecting assembly Flat oval tube 5012025T

4 Tower Bread shaped tube 5012025T

The tubes are well designed with smooth lines and reasonably combined to givethe unit a

highend look

Cushion

The cushion is made of PU with once forming technology The hardness isdesigned according to the principles of ergonomics and controlled to be aroundHBS_655 It assures that its suitable for almost all users The leather whichwraps it does not peel off or fade after getting rubbed 8000 times with a500g weight Its color can be brownish red black red etc

The upholstery is made with double stich yellow threads

Seat adjustment system 5 level adjustment

Cam

Quality hot rolled steel plate 8OT Processed with laser cuttingtechnology and guide groove are well welded to prevent distortional deformationand bring excellent durability rustremoving process and secondry sprayingbring good corrosion resistence Material quality steel

Material quality steel

Counter weight

Processlathring rustremoving and secondary spraying

Pedal PU foam and steel kneelinside the pedal bring enough strength and special user experience

Guide rail

its made of alloy steel 45 d30mm withhightemperature treatment grinding and hard chrome plating process It hasexcellent wearability corrosionresistance and ductility it does not bendor break

Shroud Front shroud

Material ABS Pocess onestep ingestion molding technology

Rear shroud

Material Cold rolled steel plate Process bending formation rustremovingsecondary spraying

Decoration strip Shiny Black

Pulley Engineeringplastic made in one form of injection

Handlebar Material PVC

Bearing The best bearing made in china

Weight stack Steel with a flat and smooth surface without pits thin but heavy

Guide rod Materialstainless steel hollow tube

Process grinding and polish

Theluster lasts for a long time

It doesnot get rusty after 48h of salt atmosphere test

Selector pin Hilt Material ABS Process onestep injection molding

Pin Material Plastic

Steel cable Max load 1000kg

It has passed a 100000 round endurance test

Exercise instruction sticker PVC sticker 3M tape with high viscosity dampproof andcorrosionresists

Footpad Material PVC

Process laser marketing technology

Graduation material stainless steel thickness2mm

Process laser marking technology

Readouts Time Repetition count

Water bottle holder Yes

Bearing cap MaterialABS mold injection

Screw Materialstainless steel screw A270 class 129 alloy steel

Transport wheel NA

Configuration

Tube ShinyBlackMatte Black Optional

Shroud Silver Black

Weight stack Black default

Cushion Brownish red default Redblack optional

Flag Material ABS Surface treatment chrome plating

The reverse side 3M Tape with high viscosity

Exceptional Performance for Commercial Gyms

Designed to withstand rigorous use, the T-817 Calf Extension offers consistent performance in busy environments. Its sturdy steel frame and power-coated finish ensure longevity, while advanced adjustable magnetic resistance caters to all fitness levels. The machine's easy-to-use interface and padded seating improve the workout experience, making it a top choice for gyms and wellness centers.


Advanced Adjustability and User Comfort

Equipped with an adjustable resistance mechanism and a padded support system, the T-817 allows users to customize intensity and posture according to their goals. The black cushioned seat and easy-to-operate weight stack help users target calf muscles efficiently, ensuring both comfort and effectiveness during each session. The electric-powered operation guarantees smooth, controlled movements every time.
