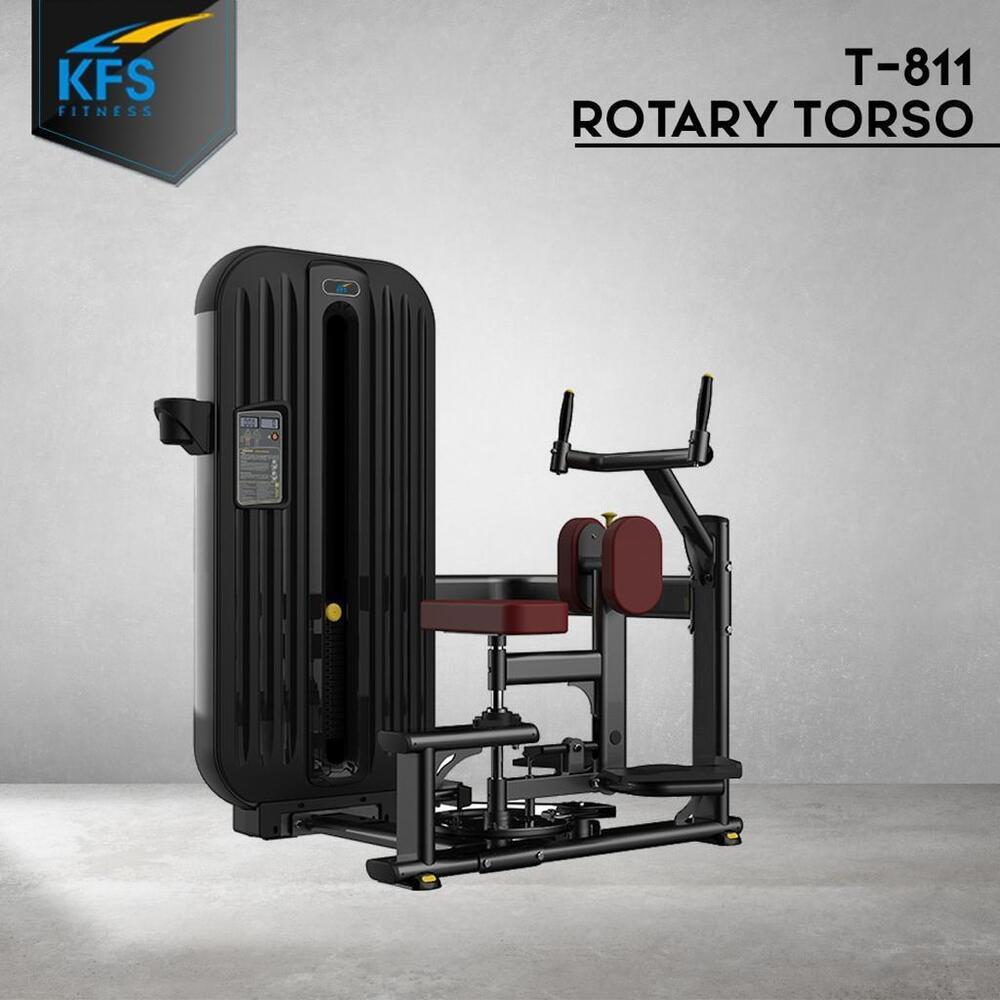

T-811 Rotary TORSO

Product Description

T8 SPECIFICATION

FEATURES

FRAME 1 Main frame:Flatetube(50x120x2.5T)

2 Press arm: Round tube (60/50x3.0T) Flat oval tube (40x80x3.0T)

3 Connecting assembly: Flat oval tube (50x120x2.5T)

4 Tower: Bread shaped tube (50x120x2.5T)

The tubes are well designed with smooth lines and reasonably combined to givethe unit a

high-end look.

Cushion

The cushion is made of PU with once forming technology. The hardness is designed according to the principles of ergonomics and controlled to be around HBS_65+5, It assures that its suitable for almost all users. The leather which wraps it does not peel off or fade after getting rubbed 8000 times with a500g weight. Its color can be brownish red, black, red, etc.

The upholstery is made with double stich (yellow threads).

Seat adjustment system5 level adjustment

Cam

Quality hot rolled steel plate (8.OT) Processed with laser cutting technology and guide groove are well welded to prevent distortional deformationand bring excellent durability; rust-removing process and secondry spraying bring good corrosion resistence. Material: quality steel

Material: quality steel

Counter weight

Process:lathring, rust-removing and secondary spraying

Pedal PU foam and steel kneelinside the pedal bring enough strength and special user experience.

Guide rail

its made of alloy steel (45#, d=30mm) withhigh-temperature treatment, grinding, and hard chrome plating process. It hasexcellent wear-ability, corrosion-resistance, and ductility; it does not bendor break.

Shroud Front shroud

Material: ABS;Pocess: one-step ingestion molding technology

Rear shroud

Material: Cold rolled steel plate; Process: bending formation; rust-removing;secondary spraying.

Decoration stripShiny Black

Pulley Engineeringplastic made in one form of injection.

HandlebarMaterial: PVC

BearingThe best bearing made in china.

Weight stackSteel with a flat and smooth surface, without pits; thin but heavy.

Guide rod Material:stainless steel hollow tube.

Process:grinding and polish

Theluster lasts for a long time.

It doesnot get rusty after 48h of salt atmosphere test!

Selector pinHilt Material: ABS; Process: one-step injection molding

Pin Material: Plastic

Steel cable Max load:1000kg

It has passed a 100,000 round endurance test.

Exercise instruction sticker PVC sticker, 3M tape with high viscosity, dampproof andcorrosion-resists.

FootpadMaterial: PVC

Process: laser marketing technology

Graduation material: stainless steel (thickness:2mm);

Process: laser marking technology.

Readouts Time, Repetition count

Water bottle holder Yes

Bearing cap Material:ABS mold injection

ScrewMaterial:stainless steel screw (A2-70); class 12.9 alloy steel.

Transport wheel N/A

Configuration

Tube ShinyBlack/Matte Black (Optional)

ShroudSilver Black

Weight stackBlack (default)

CushionBrownish red (default); Red/black (optional)

FlagMaterial: ABS Surface treatment: chrome plating

The reverse side: 3M Tape with high viscosity

Engineered for Precision and Comfort

Built with an ergonomic, fixed backrest and dual-layer high-density foam, the T-811 Rotary Torso provides users with optimal support and comfort during intense training sessions. Its textured rubber grip handles and anti-slip rubber footpads further ensure user safety and stability. The pre-assembled main frame allows for a swift, hassle-free installation, making the initial setup process efficient for fitness centers.


Customizable and Durable Design

Thanks to its heavy-duty construction using a 2.5mm/3mm steel frame and electrostatic powder-coated finish, the T-811 Rotary Torso withstands heavy and continuous use in commercial environments. Users can choose from customizable upholstery color options, while the adjustable seat and start positions allow for personalized workout settings. Robust nylon spacers and polymer-coated steel cables contribute to its longevity and smooth operation.


Targeted Oblique Strengthening

Featuring a 60-degree rotational range on each side and user-controlled speed, this equipment delivers effective abdominal twists, activating both internal and external obliques. Resistance levels are adjustable via selectorized or plate-loaded configurations, enabling progressive overload for varying fitness levels. The machines ergonomic rotary movement encourages better muscle engagement and training efficiency.
