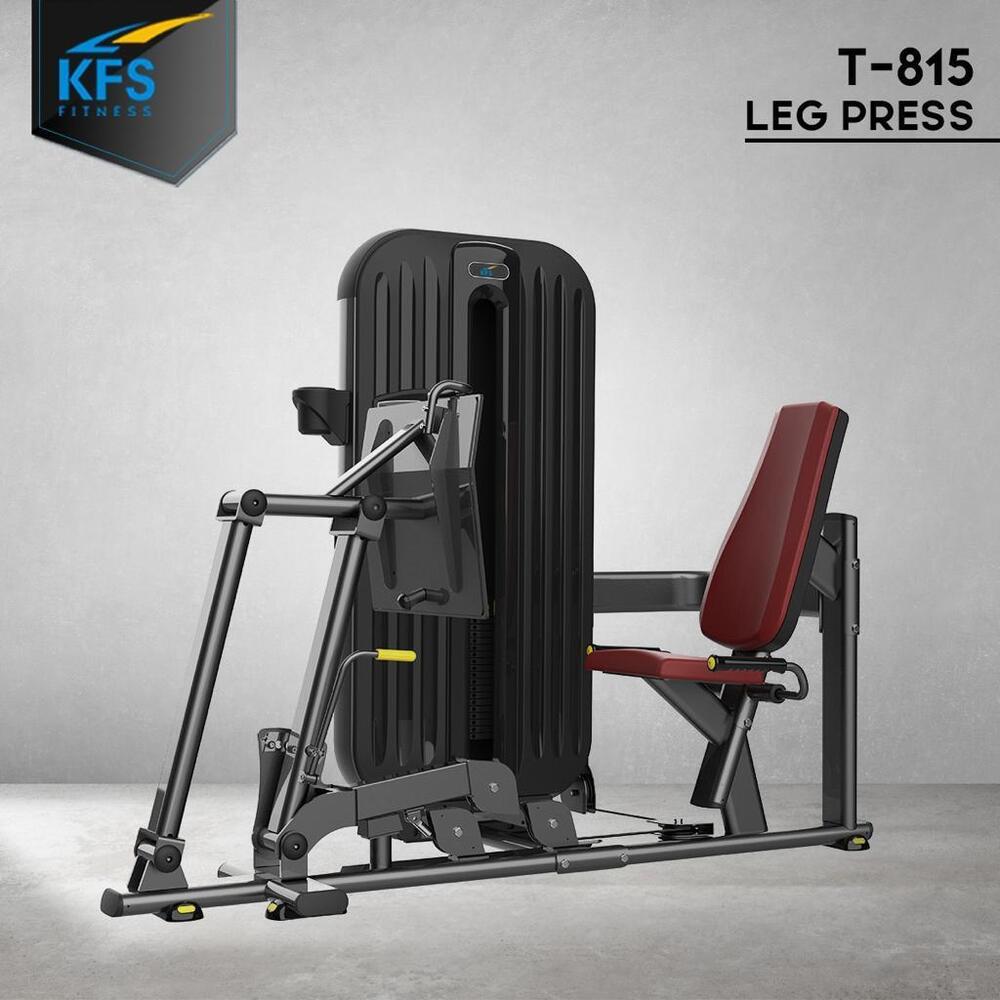

T-815 Leg Press

Product Description

T8 SPECIFICATION

FEATURES

 FRAME  1 Main frame:Flatetube(50*120*2.5T)

                 2 Press arm: Round tube (60/50*3.0T) Flat oval tube (40*80*3.0T)

                 3 Connecting assembly: Flat oval tube (50*120*2.5T)

                 4 Tower: Bread shaped tube (50*120*2.5T)

                 The tubes are well designed with smooth lines and reasonably combined to givethe unit a

                 high-end look.

Cushion

                The cushion is made of PU with once forming technology. The hardness isdesigned according to the principles of ergonomics and controlled to be aroundHBS_65+5, It assures that its suitable for almost all users. The leather whichwraps it does not peel off or fade after getting rubbed 8000 times with a500g  weight. Its color can be brownish red, black, red, etc.

     The upholstery is made with double stich (yellow threads).

Seat adjustment system    5 level adjustment

Cam

           Quality hot rolled steel plate (8.OT) Processed with laser cuttingtechnology and guide groove are well welded to prevent distortional deformationand bring excellent durability; rust-removing process and secondry sprayingbring good corrosion “resistence. Material: quality steel

                                            Material: quality steel

Counter weight

                                           Process:lathring, rust-removing and secondary spraying

Pedal    PU foam and steel kneelinside the pedal bring enough strength and special user experience.

Guide rail

                     its made of alloy steel (45#, d=30mm) withhigh-temperature treatment, grinding, and hard chrome plating process. It hasexcellent wear-ability, corrosion-resistance, and ductility; it does not bendor break.

Shroud   Front shroud

               Material: ABS; Pocess: one-step ingestion molding technology

               Rear shroud

               Material: Cold rolled steel plate; Process: bending formation; rust-removing;secondary spraying.

 Decoration strip    Shiny Black

Pulley                     Engineeringplastic made in one form of injection.

Handlebar          Material: PVC

Bearing                The best bearing made in china.

Weight stack    Steel with a flat and smooth surface,  without pits; thin but heavy.

Guide rod            Material:stainless steel hollow tube.

                                  Process: grinding and polish

                                  Theluster lasts for a long time.

                                   It doesnot get rusty after 48h of salt atmosphere test!

Selector pin       Hilt Material: ABS; Process: one-step injection molding

                                   Pin Material: Plastic

Steel cable         Max load:  1000kg

                                        It  has passed a 100,000 round endurance test.

Exercise instruction sticker PVC sticker, 3M tape with high viscosity, dampproof andcorrosion-resists.

Footpad                         Material:  PVC

                                               Process:   laser marketing technology

Graduation     material:  stainless steel (thickness:2mm);

                                 Process:    laser marking technology.

Readouts         Time, Repetition count

Water bottle holder   Yes

Bearing cap               Material:ABS mold injection

Screw                         Material:stainless steel screw (A2-70); class 12.9 alloy steel.

Transport wheel             N/A

Configuration

Tube                            ShinyBlack/Matte Black (Optional)

Shroud                 Silver Black

Weight stack         Black (default)

Cushion                Brownish red (default); Red/black (optional)

Flag                                 Material: ABS Surface treatment: chrome plating

                                         The reverse side: 3M Tape with high viscosity
